Product Overview

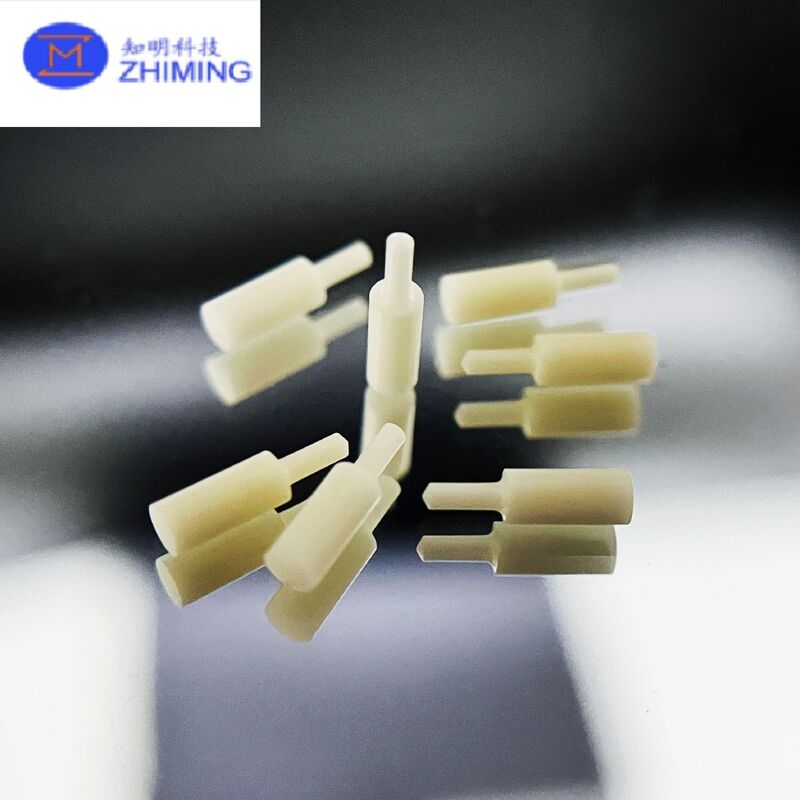

Zirconia ceramic custom components are high-performance structural and functional parts manufactured from stabilized zirconium dioxide (ZrO₂). Known for their exceptional toughness, outstanding wear resistance, and a metallic-like aesthetic, zirconia ceramics are one of the most advanced engineering materials used in precision mechanical, optical, and industrial systems.

We provide fully customized zirconia ceramic parts based on drawings, 3D models, or specific engineering requirements—including complex shapes, tight tolerances, and high-polished surfaces.

Material Characteristics

Zirconia ceramics exhibit a rare combination of high strength and fracture toughness, making them suitable for demanding applications where conventional ceramics may fail. Key material properties include:

• High Flexural Strength: Up to 1200 MPa, far exceeding alumina ceramics.

• Exceptional Toughness: Transformation toughening mechanism greatly improves impact resistance.

• Outstanding Wear Resistance: Ideal for long-term friction, sliding, and repetitive mechanical motion.

• Smooth, High-Gloss Finish: After polishing, surfaces can achieve a mirror-like texture comparable to metal.

• Low Thermal Conductivity: Provides excellent thermal insulation.

• High Hardness: 9 on Mohs scale, highly scratch-resistant.

• Chemical Stability: Resistant to acids, alkalis, and most industrial chemicals.

• Biocompatibility: Suitable for medical and food-contact applications.

Manufacturing Technologies

We support a full range of manufacturing methods for zirconia custom parts:

• CNC Machining of Sintered Zirconia – Enables tight tolerances and intricate geometries.

• Pre-sintered Machining + High-Temperature Sintering – Cost-effective for complex shapes.

• Injection Molding (CIM) – Ideal for small, complex, high-volume zirconia components.

• Precision Grinding & Polishing – Achieves Ra < 0.05 μm mirror finish.

• Laser Cutting / Marking – For ultra-fine features and identification codes.

Available materials include 3Y-TZP, Yttria-stabilized Zirconia, Magnesia-stabilized Zirconia, and Black Zirconia.

Typical Applications

Zirconia ceramic custom components are widely used across sectors such as:

• Precision Machinery: bushings, bearings, valve seats, plungers, couplings

• Electronics & Semiconductors: wafer handling parts, insulators, spacers, alignment pins

• Medical & Dental: implants, surgical tools, wear-resistant components

• Aerospace: thermal shields, wear-resistant guides

• Chemical Processing: corrosion-resistant pump parts, nozzles

• Automotive: sensor housings, high-temperature components

• Luxury & Consumer Products: watch parts, knife blades, precision decorative components

Customizable Options

We provide fully tailored zirconia ceramic solutions:

Dimensions: micro-size to large structural parts
Shapes: discs, rods, rings, tubes, plates, blocks, irregular geometries
Surface Finish: matte, polished, mirror-polished
Tolerance Range: up to ±0.002 mm depending on the structure
Colors: white, ivory, black zirconia
Holes / Slots / Grooves: CNC-machined according to drawings
Assemblies: bonded ceramic-metal or ceramic-ceramic structures

Advantages of Choosing Our Zirconia Components

• Strong R&D and engineering support for non-standard designs

• Advanced machining equipment dedicated to ceramic processing

• Stable material quality and strict quality inspection

• Support for small batch, prototype, and mass production

• Fast delivery and flexible custom service

• Long service life, reducing maintenance and replacement costs

FAQ

Q1: What information should I provide for a zirconia ceramic custom quote?

Please send your drawings (STEP, PDF, DWG), material preference, quantity, and any required tolerances or surface finishing.

Q2: Can zirconia ceramic parts be threaded or tapped?

Yes. Internal threads, external threads, and precision holes can be machined, but tolerance and wall-thickness requirements must be considered.

Q3: What is the maximum temperature zirconia can withstand?

Stabilized zirconia can operate at 1000–1200 °C, depending on material type.
